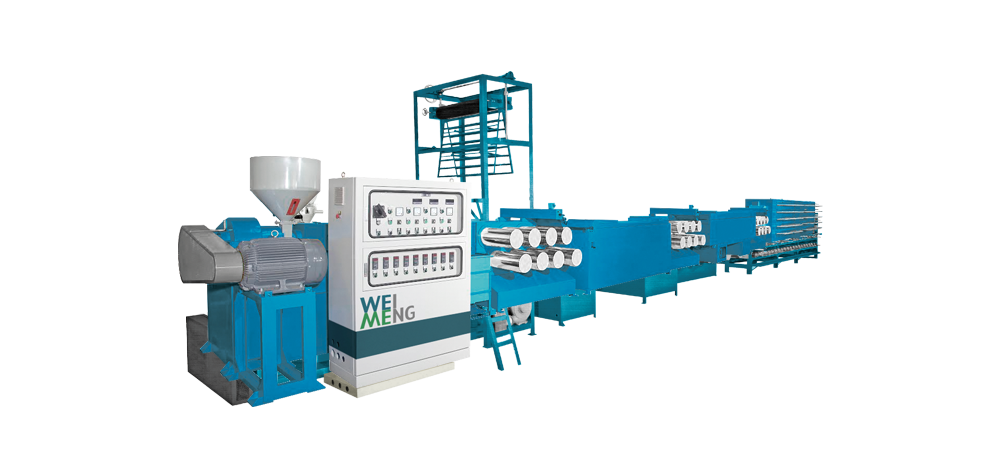

Flat Yarn Making Machine-JO-85, JO-100

Type: JO-85, JO-100
JO-85, JO-100
Support & Help
If you need more help, please contact us by the inquiry form.
Inquiry
Flat Yarn Making M/C

    Model
    JO-85
  • Screw Dia
    85 m/m
  • Motor 3 Phase A.C.
    220/380/440 V
    50/60 HZ
    40 hp * 1 set
    2 hp * 1 set
    5 hp * 2 set
    1/16 hp * 160set
  • Barrel Heating Capacity
    16 kw
  • Thermo-Controller
    6 sets
  • Capacity
    45-60 kg/hr
  • Die Lip Diameter
    300 m/m
  • Cooling Blower
    1/2 hp * 2 sets
  • Stretching Heater
    18 kw
  • Weight
    6000 kg


    Model
    JO-100
  • Screw Dia
    100 m/m
  • Motor 3 Phase A.C.
    220/380/440 V
    50/60 HZ
    50 hp * 1 set
    2 hp * 1 set
    7 1/2 hp * 2 set
    1/16 hp * 200 set
  • Barrel Heating Capacity
    20 kw
  • Thermo-Controller
    6 sets
  • Capacity
    50-70 kg/hr
  • Die Lip Diameter
    350 m/m
  • Cooling Blower
    1 hp * 2 sets
  • Stretching Heater
    25 kw
  • Weight
    7600 kg
